Sibo занимается потенциометрами и датчиками уже 30 лет.

EI18A
EI18A

EI18A

Incremental Encoders

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Magnetic encoders

  • Any PPR up to 4096 available

  • High protection degree

  • Small size（Housing dia.Φ18mm）

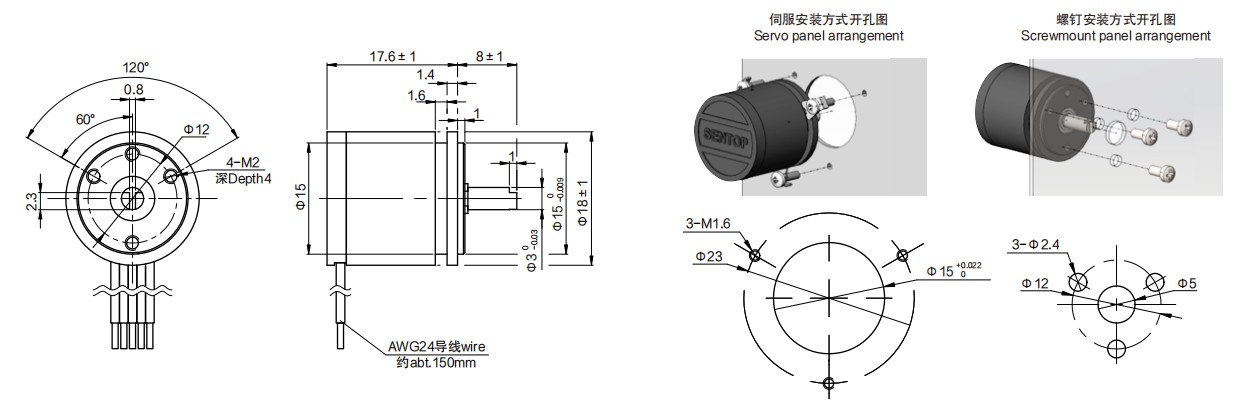

  • Screw&Servo mount

Измерение


Параметр

General Mechanical Specifications

Protection degree

IP67

Operating torque

<1mN·m

Max.speed

6000 rpm

Life expectancy

100,000,000

Mass

Approx.20g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃～+125℃

Storage temperature range

-40℃～+125℃

General Electrical Specifications

Standard model

EI18A-C5-W4096-P

Applied voltage

3.3V-5V

Output high level

>3V

Output low level

<0.25V

Output form

Push-pull output

Number of output pulse

4096 ppr

Output propagation delay

<2μs

Current consumption (no-load)

<20mA

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)
