In the field of engineering machinery, precise and efficient control is the key to improving the quality and efficiency of operations. As a professional in this track, SIBO, with our professional R&D team and continuous innovative technical strength, can not only provide customers with high-performance products and customization solutions but also undertake complete flow schemes. In addition, we have independent intellectual property rights and strong technological R&D capabilities, so that customers do not have to worry about legal risks of infringement of components of their exported integrated equipment.

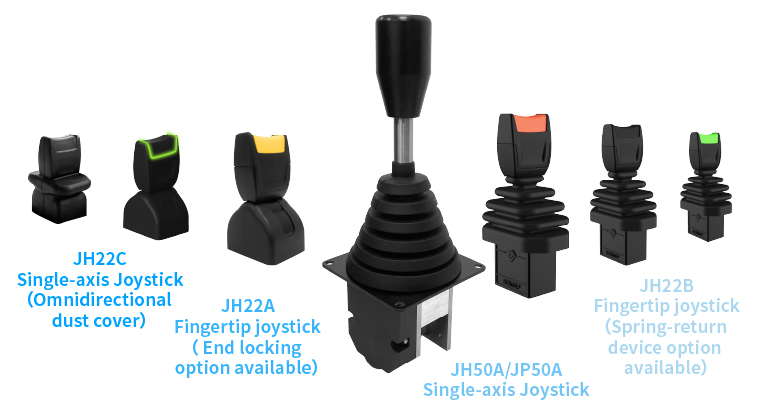

Next, we will provide you with a detailed introduction to four popular single-axis joysticks. Whether it's for precise operation in a compact space, stability under high-intensity conditions, or protective requirements in extreme environments, we can offer you customized solutions tailored to your specific scenarios and provide all-directional services to achieve your diverse needs. Special offers are now available. Join us on a journey to upgrade the control of engineering machinery and make every operation precise and efficient!

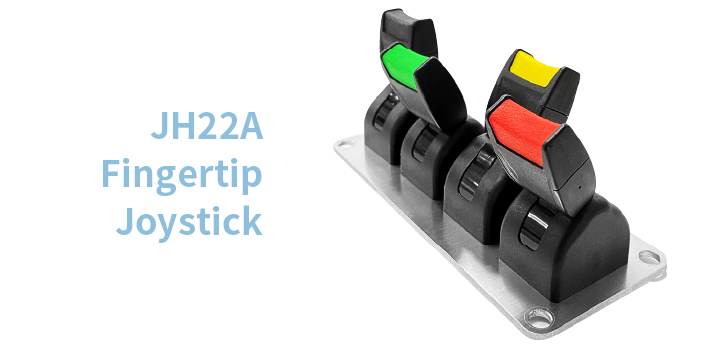

Model 1: JH22A series fingertip joystick

The JH22A is a popular single-axis fingertip joystick from Sibo, featuring an excellent technical core within its compact and elegant casing.

1. Suitable for serial installations: Its upper end has a length and width of only 22×23mm, making it suitable for multiple pieces to be installed side by side.

2. Multiple handle color options available: The top of the handle is coated by soft rubber, providing a more comfortable manipulation. The rubber coating and the plastic part of handle can generate various color combinations. The rubber coating can also be marked with different custom ICONS or made of a luminous material.

3. Diverse output signals: It can not only output a single signal, but also co-source dual or independent dual signals, and can also output switch signals at specific positions.

4. Mechanical customization: In addition to the spring-return functionality, it can also achieve front and rear end mechanical locking, friction locking, etc.

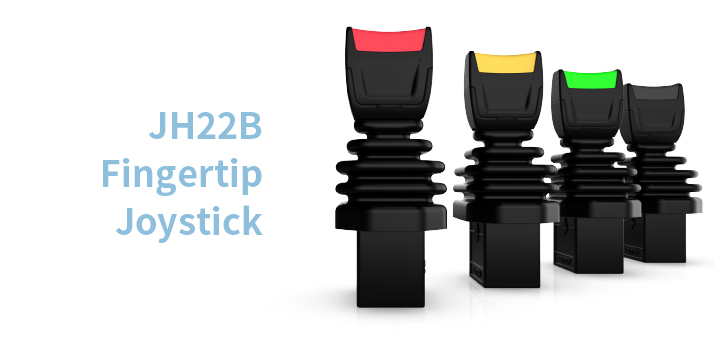

Model 2: JH22B Series fingertip joystick

The JH22B single-axis fingertip joystick is also compact, with a small size specially designed for control boxes. Precise remote control can be easily achieved by simple fingertip movements.

1. Long service life: thanks for the contactless magnetic nature, the service life can reach 5 million times.

2. High protection level: Equipped with a dust-proof cover, its protection level above the panel can reach IP65, and that of the electrical part can reach IP67.

3. Wide power supply compatibility: It can be supplied with 5V, 12V and 24V voltage.

4. Various output signals: Common ones include 0~5V, 0~10V, 4~20mA, PWM, etc. It also supports different output amplitudes, up to 2 switch signals and special signals customization.

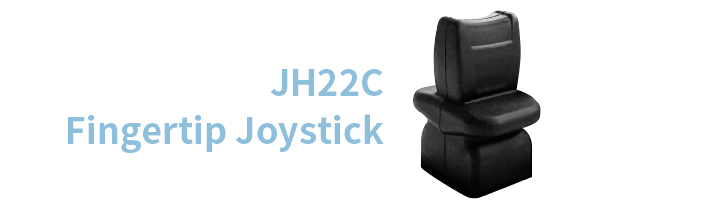

Model 3: JH22C Series fingertip joystick

The newly launched JH22C compact joystick by Sibo features a compact design with dimensions of 29.5mm×52.4mm. With its all-directional dust-proof cover, it can easily withstand harsh environments and operate stably under various severe working conditions. It supports 5V power supply and can output single, co-source dual or independent dual signals, and supports up to two switch signals.

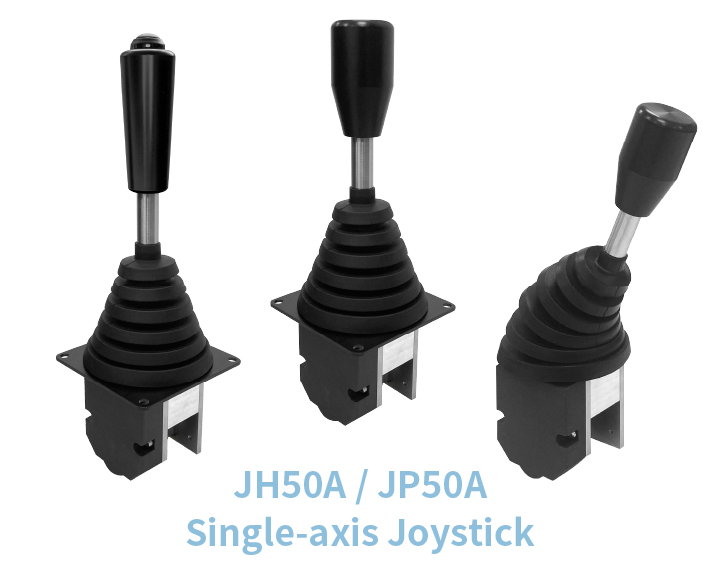

Model 4: JP50A/JH50A series single-axis joysticks

The JH50A/JP50A joystick is the latest single-axis joystick developed by Sibo. It adopts a special mechanical structure and material strength, enabling it to withstand higher operating forces. If your equipment needs to perform high-intensity operations in harsh working environments or withstand certain impacts and vibrations during operation, the JH50A/JP50A joystick can meet your requirements and ensure the accurate and reliable operation of your equipment. It also supports customization of special specifications such as central-position self-locking, single-side spring return and special knobs.

If you are interested in our joysticks, please feel free to contact us for more information.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.

More information

Shanghai Sibo M&E Co., Ltd is a renowned enterprise and recognized by numerous awards such as Shanghai High-tech Enterprise, Shanghai "Specialized and Innovative" Enterprise, Shanghai SMS Enterprise, Shanghai Class AAA Contract Credit Enterprise, Class A Taxpayer Enterprise, and Shanghai Advanced Private Enterprise. Meanwhile SIBO has achieved quality management certification ISO9000.The company's products have been exported to overseas markets such as Southeast Asia, Europe and the United States for a long time. There are thousands of types of products, including potentiometers, joysticks, pedals, draw wire sensors, encoders, handwheels, and signal communication modules. Welcome to inquire and patronize!
