Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

OF30-MCA
OF30-MCA

OF30-MCA

Oli-Filled POT.

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Single turn

  • Conductive Plastic

  • Bushingmount　

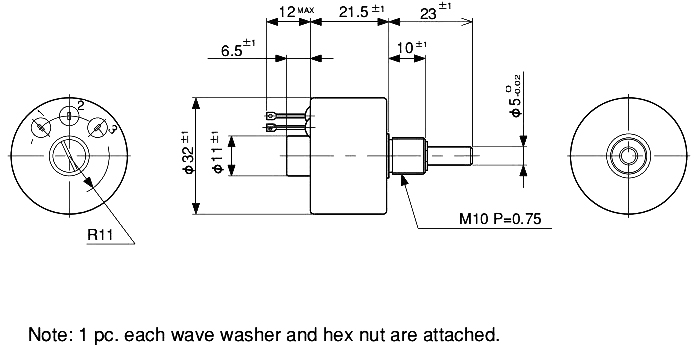

Dimensión


Parámetro

General Specifications

Standard Resistance Range

1K,2K,5K,10K(Ω)

Special Practical Resistance Values

500,20K,50K,100K (Ω)

Total Resistance Tolerance

Standard Class ±10%(K)

Independent Linearity Tolerance

Standard Class ±1.0%, Precision Class ±0.5%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance

<2%C.R.V.

Power Rating

1.0W

Electrical Travel

280±5°

Mechanical Travel

360°(Endless)

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<30mN·m(300gf·cm)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx.40g

Special Specifications Available

Special shaft type

Shaft dia. (φ 3.175mm)&bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra tap (Available up to 1 tap)

Special mounting

Servomount type (Mounting dimensions are the same as those of OF20HHPS and housing length becomes 25.5mm.)
