Producto Producto

Producto

Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

OF30
OF30

OF30

Oli-Filled POT.

瀏覽量： Tiempo: 2023-01-09

    Características：

  • Single turn

  • Wirewound

  • Bushingmount　

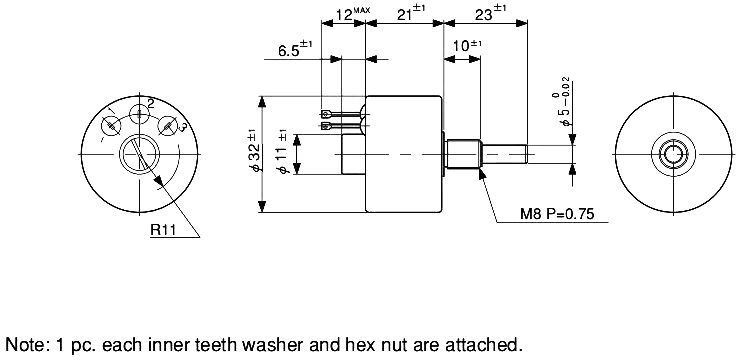

Dimensión


Parámetro

General Specifications

Standard Resistance Range

500Ω~10KΩ

Max. Practical Resistance Value

20KΩ

Total Resistance Tolerance

Standard Class ±10%(K), Precision Class ±5%(J)

Independent Linearity Tolerance

Standard Class ±2.0%, Precision Class ±0.5%

Power Rating

0.75W

Noise

<100Ω E.N.R.

Electrical Travel

280°±5°

Mechanical Travel

360°Endless

Insulation Resistance

>100MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<30mN·m(300gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx. 40g

Special Specifications Available

Special resistance value

Special lower practical resistance values (50Ω to 200Ω )

Special shaft type

Shaft dia. (φ 3.175mm)&bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra tap (Available up to 1 tap)

With stopper

Rotating angle is 300°and stopper strength is 0.3N?m [3kgf?cm]
