Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

XL60W
XL60W

XL60W

Draw Wire Sensor

瀏覽量： Tiempo: 2023-01-29

    Características：

  • Incorporate multi-turn contact potentiometer

  • Measurement ranges: 1500mm

  • Output signal: 5K，10K，0~5V，0~10V，4~20mA

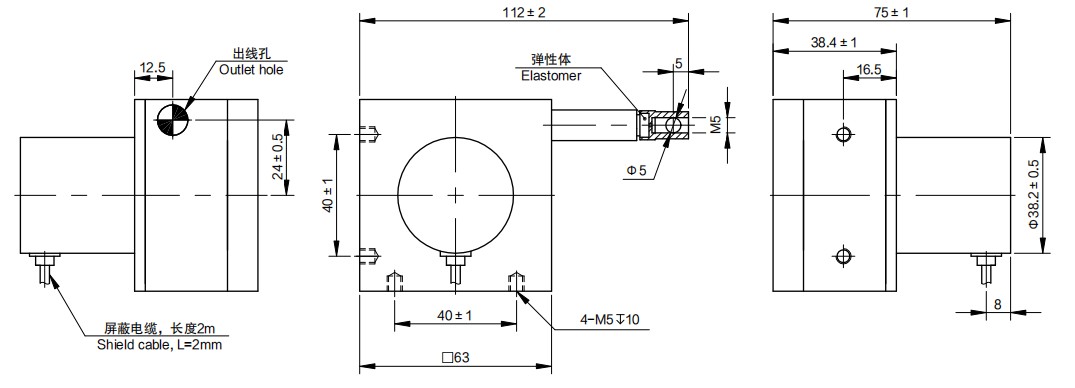

Dimensión


Parámetro

General Mechanical Specifications

Measure stroke

1500mm

Protection degree

IP54

Tensile force

2N~4N

Mechanical Life expectancy

1,000,000

Mass

Approx.580g

Housing material

Anodized aluminium alloy

Wirerope

0.6mm flexible wire

Max. reciprocating speed

600mm/s

The length of the cable

2m

Environmental Specifications

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

Shock

10~1500Hz、10G

Vibration

50G

General Electrical Specifications

Multi-turn wirewound potentiometer model

SAKAE 22HPM

Applied voltage

5V±10%

Output signal

0～5V

Current consumption (no-load)

<30mA

Repeatability accuracy

0.1%

Electrical angle

3600º±5°

Independent linearity tolerance

Standard±0.25%，Precision ±0.15%

Resolution

5000（5K）/ 6400（10K）

Response frequency

≤300KHz

Special Specifications Available

Special specifications

Available for multi-segment output, special cables, high protection degree, etc.
