Clients who use products from brands such as Mexico Sxxx/ UK Ixxx are in luck!
2025 inch shaft has now '10rolled' into the competitive track...
If you have high-level requirements on products quality, choose SENTOP, it's the right choice!

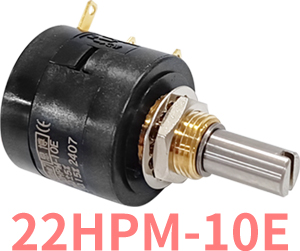

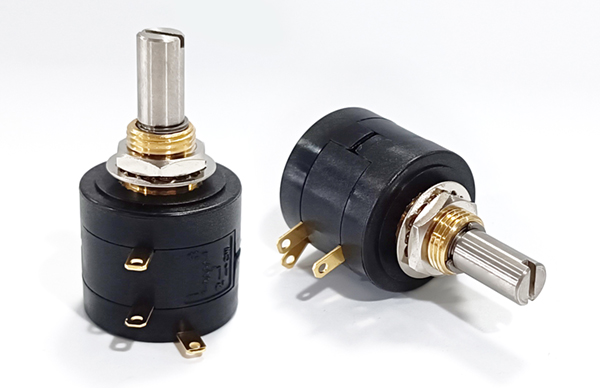

Product Features:
- Inch shaft diameter φ6.35mm
- RoHS compliant
- Number of turns: 10-turn
- Embedded structure
General mechanical performance
-Protection degree: IP40
-Life expectancy: 1,000,000 rotations
-Mass: 20 g
-Operating temperature: -55℃ ~ +105℃
General electrical performance
-Standard number of turns: 10-turn
-Available resistance range: 100Ω~100kΩ
-Total resistance tolerance: Standard Class ±5% (J), Precision Class ±1% (F)
-Independent linearity tolerance: Standard Class ±0.15%(<5KΩ: ±0.25%), Precision Class ±0.1%, (<5kΩ: ±0.15%)
-Power rating: 2.0W
-Noise:<100ΩE.N.R.
For more detailed parameter information, welcome to visit our official website to view sample information.
http://www.939km.cn/en/Multi_turn_Wire_wound_POT/265.html
Japan-original imported SAKAE/SENTOP precise Multi-turn Wire-wound Potentiometer 22HPM are widely used in industries including automation equipment, medical equipment, railroad vehicle, engineering machinery and others. With the high quality, high stability and high cost performance ratio, it has widely earned the favor and praise of our customers in the market.
In the pursuit of excellence, we always adhere to the customer-centered vision and regard every customer's feedback as a valuable guidance. In the process of understanding the market demand, we found that there are many customers who favor the 22HPM Metric-shaft products, and there are also a lot of customers who urgently need a solution for the Imperial-unit shaft with size of φ6.35mm. In order to meet the diverse needs of our customers, we have launched the 22HPM-10E, which continues the advantages of the 22HPM series in terms of high quality and high performance, and accurately adapts to Imperial-unit size scenarios.
If you are interested in 22HPM-10E or have any questions, please feel free to contact us to place an order. We hope that 22HPM, a Multi-turn Potentiometer, will bring more customers a more appropriate experience.
If you have further requirements on product life expectancy, we have 22HHPM and R22M for your selection.
Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.
More information
Shanghai Sibo M&E Co., Ltd is a renowned enterprise and recognized by numerous awards such as Shanghai High-tech Enterprise, Shanghai "Specialized and Innovative" Enterprise, Shanghai SMS Enterprise, Shanghai Class AAA Contract Credit Enterprise, Class A Taxpayer Enterprise, and Shanghai Advanced Private Enterprise. Meanwhile SIBO has achieved quality management certification ISO9000.The company's products have been exported to overseas markets such as Southeast Asia, Europe and the United States for a long time. There are thousands of types of products, including potentiometers, joysticks, pedals, draw wire sensors, encoders, handwheels, and signal communication modules. Welcome to inquire and patronize!
For more product information, please visit Sibo's website at www.939km.cn/en/
