Sibo has focused on potentiometers and sensors for 30 years.

SBS022
SBS022

SBS022

Signal Converter

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Non isolated power

  • Economy version

  • Optional output signal: 4～20mA、0～10V

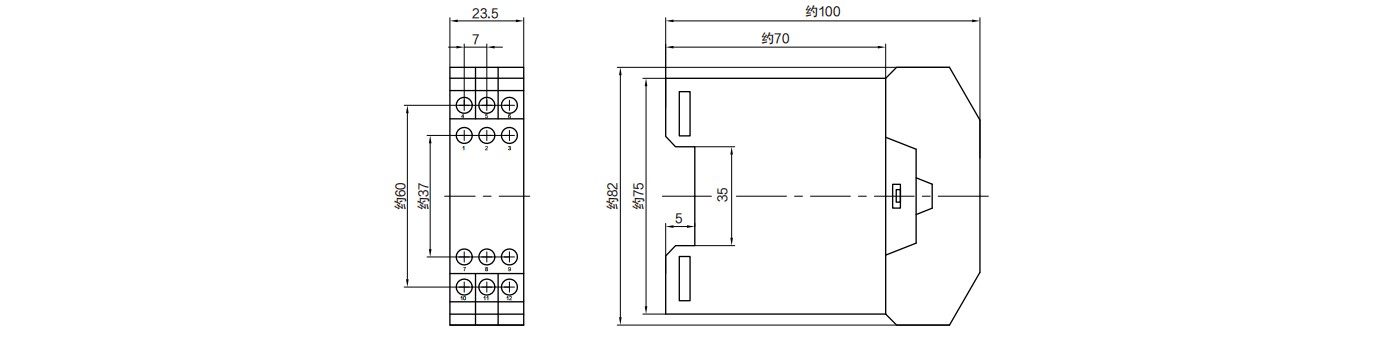

Dimension


Parameter

General Mechanical Specifications

Protection degree

IP20

Installation mode

Guide rail 35mm (DIN EN 50022)

Housing material

Plastic (white)

Environmental Specifications

Operating temperature range

-25℃~+85℃

Storage temperature range

-25℃~+105℃

General Electrical Specifications

Resistance range

1KΩ～500KΩ

Applied voltage

15~35VDC.

Output signal

0~10V / 4~20mA

Rated current

≤30mA

Accuracy

±0.1%

Load resistance

>5KΩ(Voltage output)；<600Ω(Current output)

Resolution

Essentially infinite

Dielectric strength

1000V.A.C/1 min
