Sibo has focused on potentiometers and sensors for 30 years.

HSM22M
HSM22M

HSM22M

Multi-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-10

    Characteristics:

  • Magnetic rotary sensor (Hall effect)

  • Multi-turn

  • Bushingmount

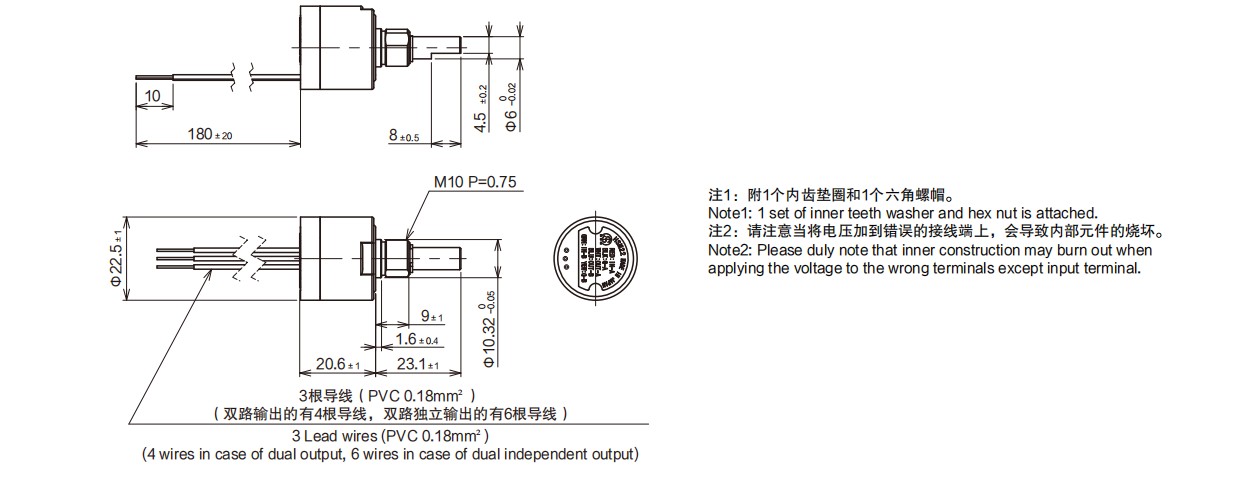

Dimension


Parameter

General Mechanical Specifications

Mechanical rotating angle

360°(Endless)

Protection grade (IP)

IP50 (PCB: IP65)

Rotating torque

<5mN·m(<50gf·cm)

Backlash

<10°

Rotational life expectancy

Approx. 20,000,000

Mass

Approx.35g

Environmental Specifications

Temperature coefficient

<±0.3%Vout/FS

Operating temperature range

-40℃~+85℃

Storage temperature range

-40℃~+85℃

Thermal shock

-40℃~+85℃, 5cycles

Exposure at low temperature

-40℃, 24hours

Exposure at high temperature

+85℃, 1,000hours

Vibration

10~2,000Hz 196m/s2, 12hours

Shock

490m/s2 <18times

EMS tolerance

100V/m (80MHz~1GHz,1KHz80% Amplitude modulation)

ESD tolerance

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2

General Electrical Specifications

Standard model

HSM22M

Applied voltage

5V±10%D.C.

Effective output

5%±3%~95%±3% Vin

Current consumption

<16mA(Single output), <32mA(Dual output & dual independent output)

Load resistance

>10KΩ

Effective electrical angle

3600°±7°

Independent linearity tolerance

±0.5%FS

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special effective electrical angle

1080°,1800°,2880°-Arbitrary angles

Special shaft

Special machining on the shaft

Special output

Cross, parallel, Dual independent output, PWM

Special applied voltage

12V, 24V

Special current consumption

Low current consumption in slow mode
