Sibo has focused on potentiometers and sensors for 30 years.

H40JHK
H40JHK

H40JHK

Magnetic-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • 3-dimensional coordinate type joystick

  • Hall effect joystick

  • Low-cost

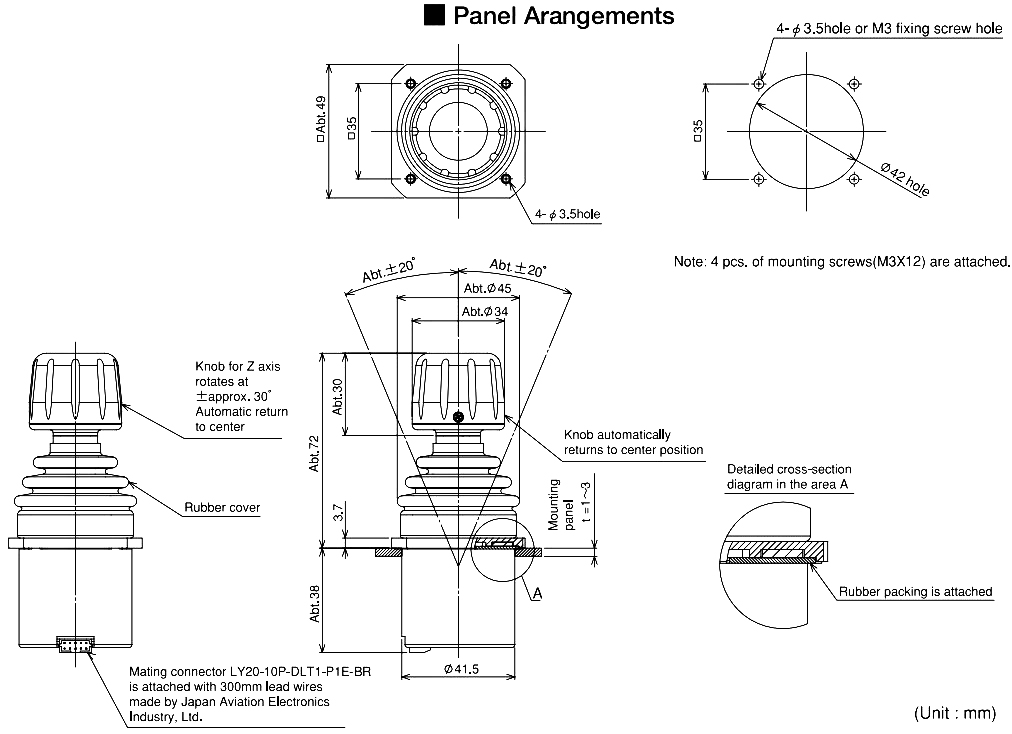

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

3-dimensional coordinate type, X and Y directions: Approx. ±20° from center position, Z direction : Approx.±30° from center position

Operating force

Standard spring return device (Automatically return to center), X and Y directions: Approx.1～4N(100～400gf)

Operating temperature range

Z direction : Approx.40～80mN?m(400～800gf?cm)40~60mN·m(400~600gf·cm）

Vibration

-20℃~+60℃

Shock

10~55HZ，98m/s2

Mechanical life expectancy

294m/s2

Mass

Approx. 5,000,000 operations for X and Y axes, Approx. 3,000,000 operations for Z axis.

General Electrical Specifications

Type

Hall effect IC type resistive element incorporated

Applied voltage

5V±10%

Effective output

Approx.0.5V～4.5V

Electrical rotating angle

X and Y-axis: Approx.±20°, Z-axis: Approx.±30°

Independent linearity tolerance

±3%

Load resistance

＞10KΩ

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

＞1000MΩ（500V.D.C）

EMS durability

100V/m (80MHz?6GHz Based on ISO11452-1?-3)

ESD durability

±8kV contact ±15kV aerial discharge (Based on IEC61000-4-2)
