Sibo has focused on potentiometers and sensors for 30 years.

CP22
CP22

CP22

1-turn Wire-wound POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Single turn

  • Wirewound

  • Servomount

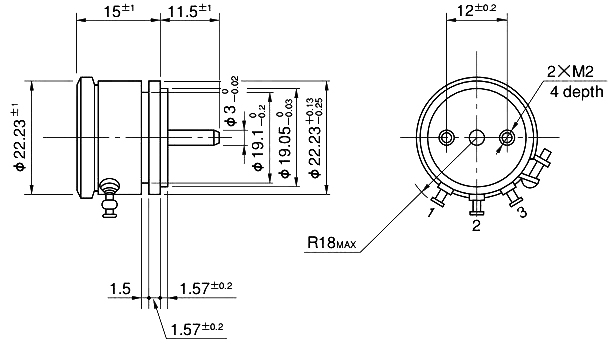

Dimension


Parameter

General Specifications

Standard Resistance Range

50Ω~10KΩ

Max. Practical Resistance Value

20KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.2%, (±0.3% in case of within 1kΩ )

Power Rating

0.5W

Noise

<100ΩE.N.R.

Electrical Travel

355°±5°

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<1.5mN·m(15gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.15g

Special Specifications Available

Special resistance value

Lower resistance values (10Ω , 20Ω )

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 10mm length), shaft dia. (φ 3.175mm) with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra taps (Available up to 2 taps)

With stopper

Rotating angle is 330°and stopper strength is 0.3N?m [3kgf?cm])

Special gangs

Multi-ganged (Available up to 5 gangs. Housing length is extended by 8.5mm per gang)
