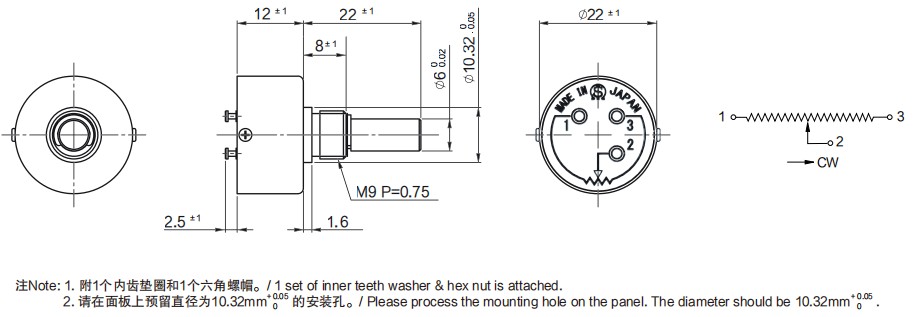

Mechanical travel

360º（Endless）

Protection grade (IP)

IP40

Starting torque

<5mN·m(50gf·cm)

Rotational life expectancy

25℃, No load at 400 r.p.m., inverting every 15 minutes 10,000,000 shaft revolutions, Total resistance value variation: <±10％ against initial value,Independent Iinearity tolerance:<150％ of specified value, Output smoothness: within 150％ of specified value

Mass

Approx.20g

Housing material

Aluminum

Operating temperature range

-55℃～+105℃

Temperature cycle

5 cycles under -55℃～+105℃, total resistance value variation: <± 10％, No mechanical damage.

Exposure at low temperature

24 hours at -55℃, Total resistance value variation: <±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 105℃, Total resistance value variation: <±10％, No mechanical damage.

Vibration

10Hz～2000Hz, 147m/s², 12 hours, Total resistance value variation: <±2％, No mechanical and electrical damage.

Shock

90m/s², 11ms, 18 times, Total resistance value variation: <±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 120 hours, Total resistance value variation: <±10％,Insulation resistance: >10MΩ.

Resistance temperature coefficient

±400p.p.m./°C

Standard resistance values

1k, 2k, 5k, 10k(Ω)

Special practical resistance values

500, 20k, 50k, 100k(Ω)

Total resistance tolerance

Standard class ±15%(L)，Precision class ±10%(K)

Independent linearity tolerance

Standard class ±1.5%，Precision class ±1.0%

Resolution

Essentially infinite

Output smoothness

<0.1% against input voltage

Contact resistance variation

<2%C.R.V.

Electrical travel

320°±5°

Power rating

1.0W

Insulation resistance

>1000MΩ (500V.D.C.)

Dielectric strength

500V.A.C./1 min

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 20mm length), shaft dia. (φ6.35mm) & bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Extra tap

Extra tap (Available up to 1 tap)

With stopper

With stopper (Rotating angle is 320° and stopper strength is 0.9N?m [9kgf?cm])

Special protection grade (IP)

IP54
